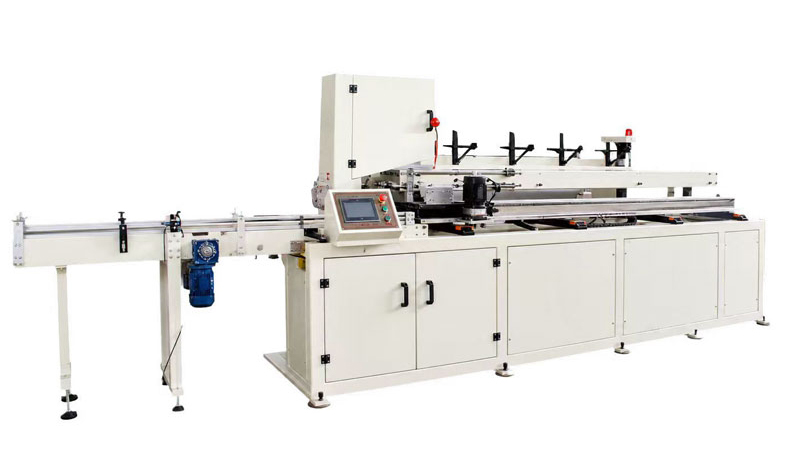

Toilet Paper Roll Band Saw Cutting Machine
The Toilet Paper Roll Band Saw Cutting Machine cuts toilet paper master rolls into finished rolls with high precision and speed. Cutting length is set on the touch screen, making size changes quick and accurate for cored and coreless products.
Key Features:
Maximum master roll size: 2850 mm
Production speed: up to 140 cuts/min with core
Paper cutting diameter: 60-135 mm
Cutting length 50-430 mm, touch screen controlled, tolerance +/- 1 mm
Minimum head and tail length: 15 mm
Vertical cutting tolerance +/- 1 mm (cored / coreless)
Paper cutting channel: single
Technical Specifications:
Main power: 5 kW, 380V / 50 Hz
Dimensions: 3500 x 2200 x 1850 mm (LxWxH)
Weight: 1.5 T
